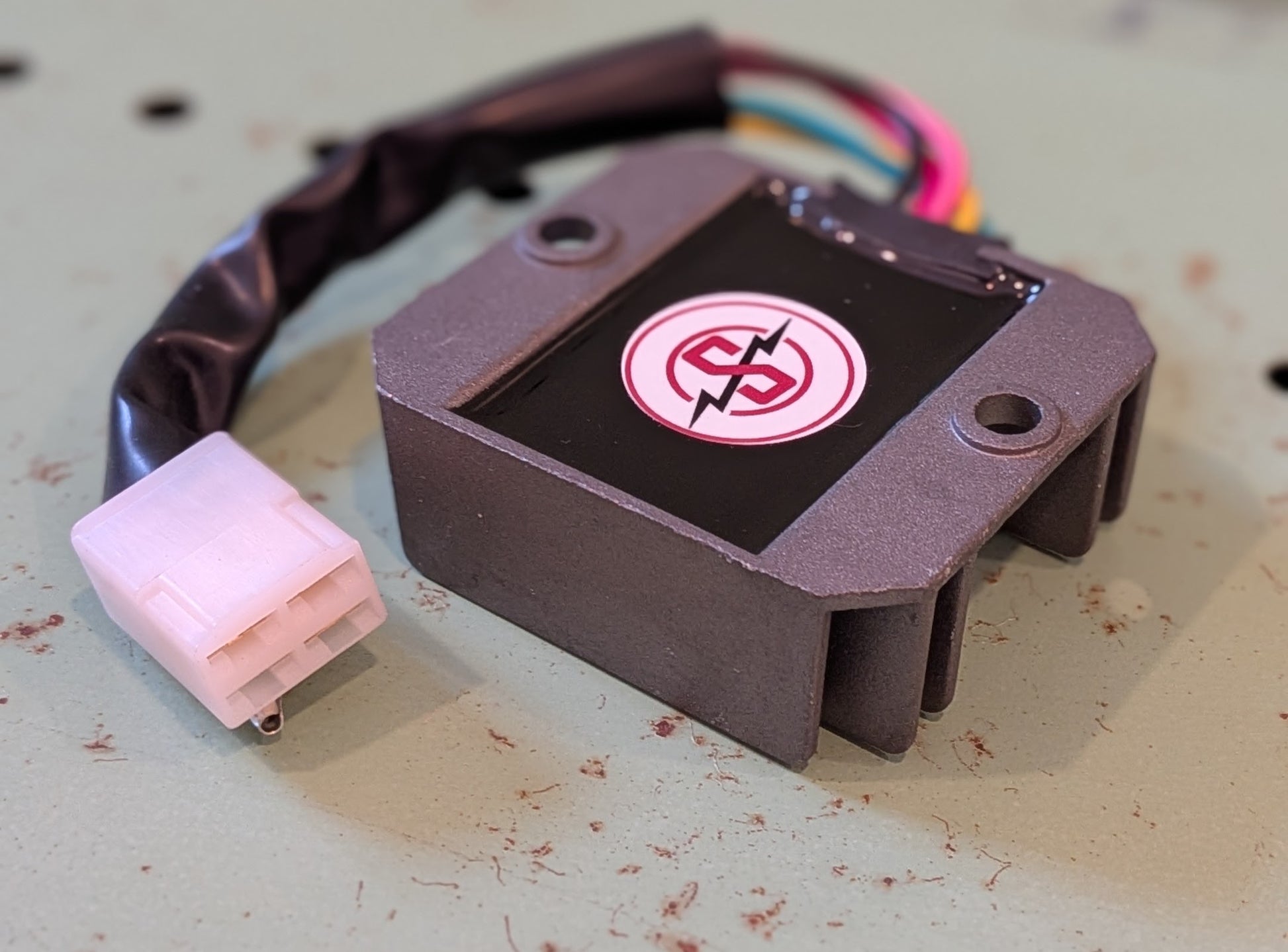

12V Single Phase Regulator/Rectifier

Specifically designed and engineered for Sparck Moto, our single phase regulator/rectifier is designed to modernize your 12V permanent magnet charging system up to 180W. Acceptable for use with both lead acid and lithium ion batteries and fits the following machines:

• All Honda singles and twins through 1978
• Most pre-1970 British twins (either positive or negative ground, replaces rectifier and zener diode)
• Most Kawasaki models with two yellow alternator wires
• Most Suzuki T and GT two strokes with two cylinders

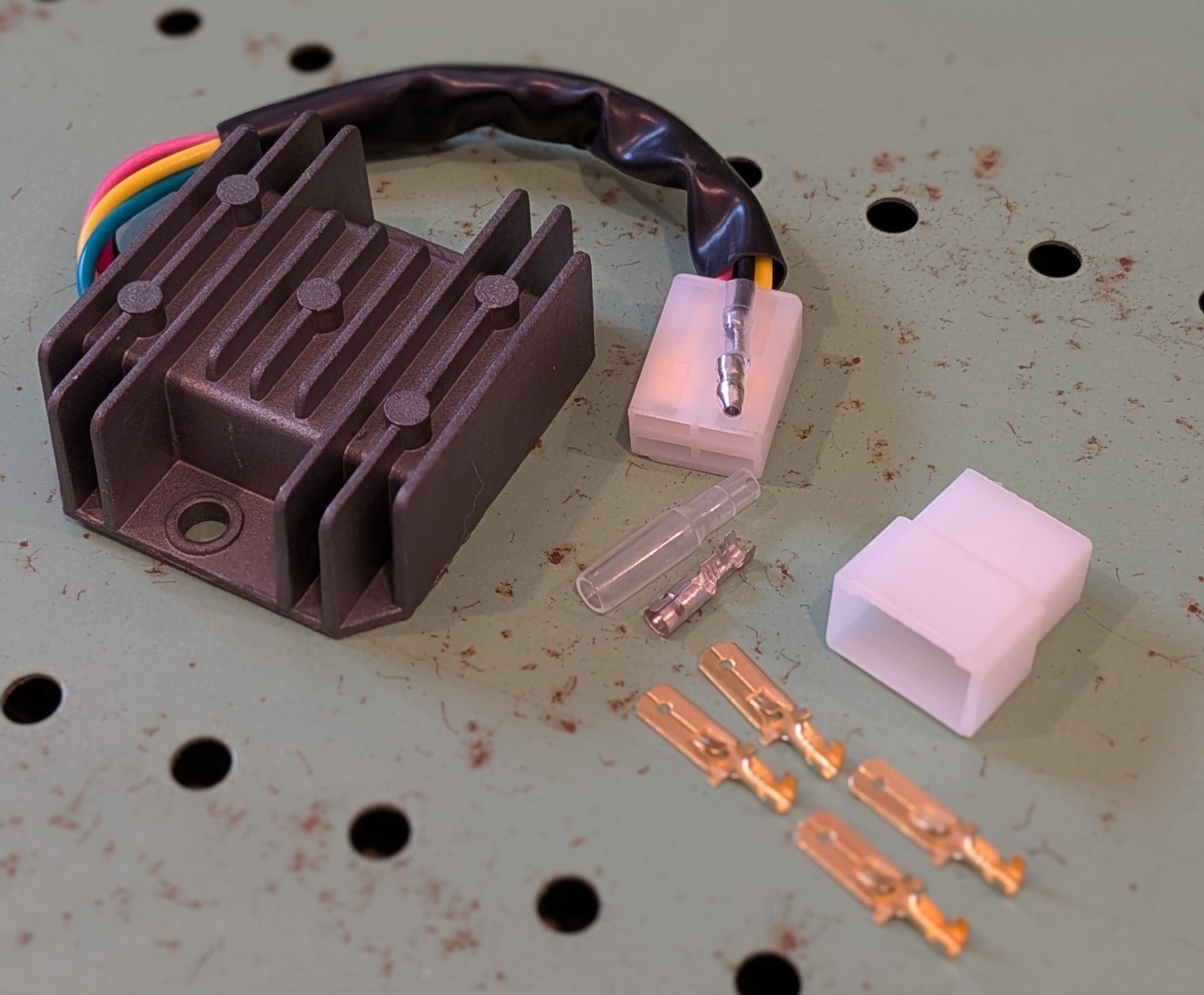

Comes pre-wired and will plug-and-play with most Honda twins. Includes hardware for other applications.

Wire colors:

Yellow - AC from alternator

Pink - AC from alternator

Green - Ground

Red - Battery positive terminal

Black - Voltage sensing. +12V when ignition switch on.
